NB-500

Current Location:Welding Equipment > Industrial Welding Power Suppl > NB-500

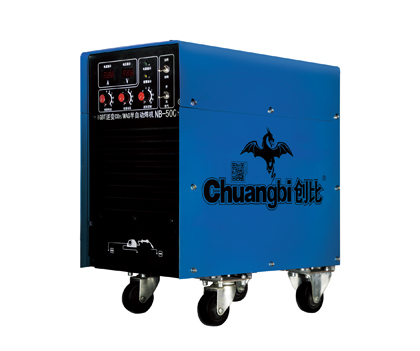

NB-500
Product Presentation

  • Digital control system,welding parameter preset and real-time display

  • Digital control system,welding parameter preset and real-time display

  • High performance multifunction power source(MMA/MIG/MAG/Lift TIG)

  • Synergic control welding parameter,waveform control,stable welding arc

  • Parameters memory function

NB-500 technical parameters
ModelMAGIC MIG-500MAGIC MIG-500E
Power Supply Voltage(V)3~380/415/440±10%
Frequency(HZ)50/60

MIGTIG
MMA
Rated Input Power(KW)27.52127.9
Rated Input Current(A)35.527.236
Duty Cycle(40℃ 10min)60P0A
100@0A
No Load Voltage(V)76
Welding Current Range(A)30~50020~50020~500
Welding Voltage Range(V)14.5~4410.8~3020.8~40
Efficiency(%)87
Power Factor0.85
Wire Diameter(mm)0.8/0.9/1.0/1.2/1.6
Net Weight(kg)43.5
Dimensions(mm)620×310×535
Protection ClassIP23
Insulation ClassF
CoolingAF
