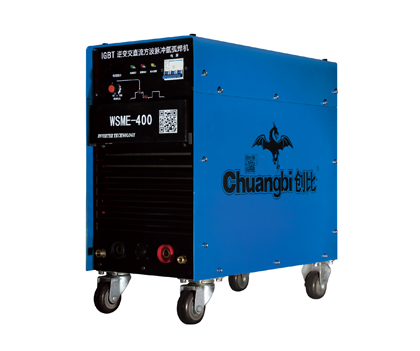

WSME-400
WSME-400
Product Presentation
IGBT technology,MCU control system,Easy for HFignition
Anti arc break
eadal control,Multi Multi proess: AC inverter TIG/MMA, DC inverter TIG/MMA
Outstanding performance on Al-alloy, carbon steel, stainless steel, titanium
Intelligent protection: Over-voltage, Low-voltage, Over-current, Over-heat
Multi-remote Control function
| WSME-400 technical parameters | ||
| Model | WSME-350(220V) | WSME-350(380V) |
| Power Supply Voltage(V) | 3～220±10% | 3～380±10% |
| Frequency(HZ) | 50/60 | |
| Rated Input Power(KW) | TIG11 MMA14.8 | TIG10.2 MMA14.5 |
| Rated Input Current(A) | TIG30.2 MMA40.1 | TIG24.2 MMA32 |
| Duty Cycle(40℃ 10min) | AC 50% 350A | DC 50% 350A |
| AC 70% 315A | DC 70% 315A | |
| AC 100% 260A | DC 100% 280A | |
| No Load Voltage(V) | 76 | |
| Start/Welding/crater Current Range(A) | AC 10～350 | DC 5～350 |
| Up slope/down slope Flow(S) | 0～10 | |
| Pre/Post Flow(S) | 0.1～10/1～10 | |
| Power Factor | 0.8 | |
| Clearance Effect(AC TIG)10% | 15～50 | |
| Pulse frequency(Hz) | 0.5～200 | |
| AC frequency(Hz) | 50～250 | |
| PLuse Width range(%) | 5～100 | |
| Net Weight(kg) | 38 | |
| Dimensions(mm) | 600×315×605 | |
| Protection Class | IIP23S | |
| Insulation Class | F | |
| Cooling | AF | |
